BPYJVP 3*16

•

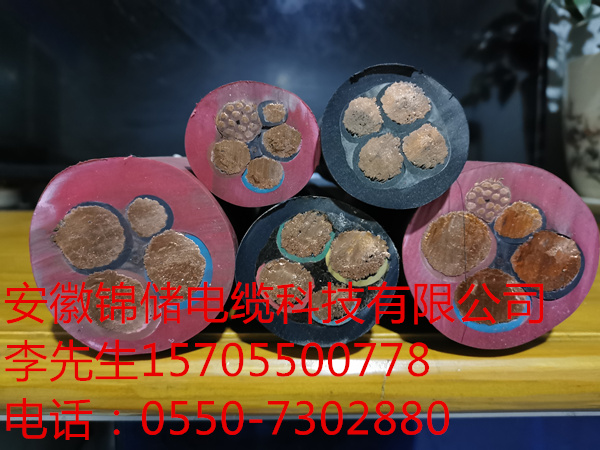

http://www.jinchucable.com/10KV BPYJVP变频电缆主要用于变频电源和变频电机之间连接用的电缆，以及额定电压1kV及以下的输配电线路中，作输送电能用。尤其适用于造纸、冶金、纺织、金属加工、矿山、铁路和食品加工等行业。

Frequency Converter cable is mainly used as the connection cable between frequency converter power supply and frequency converter motor. And it is also used to transmit power on distribution line of rated voltage 1kv or lower. It is specially used in the field of paper-making, metallurgy, textile mill, metalworking, mine, railway and packinghouse etc.

10KV BPYJVP变频电缆使用条件

1、额定电压U₀/U：10kV。

2、电缆导体长期允许zui高温度为90℃，短路时zui高温度为250℃（zui长持续时间为5秒）。

3、安装敷设环境温度不低于0℃，固定敷设时环境温度不低于-10℃。

4、电缆允许zui小弯曲半径不小于15D（D-电缆外径，mm）。

Working Condition

Rated voltage U₀/U：0.6/10kV

• Max temperature of cable conductor for Long-term working is 90℃. Max. working temperature of cable conductor is 250℃ during short circuit (the longest lasting time shall be no more than 5 seconds).

• Environment temperature for installing is no less than 0℃and -10℃ for fixed installing.

• Min bending radium allowed by cable is no less than 15D. (D means outer diameter of cable with unit “mm”)

产品性能

1、BPYJVP变频电缆

设计采用符合GB/T3956规定的铜导体。原型号前加ZR---表示阻燃型

2、交联聚乙烯绝缘，耐温耐候性好。

3、低传输阻抗，电磁兼容性好。

4、低工作电容。

5、良好的抗干扰和低辐射性能。

6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

Product Performance

Design for type BPYJVP 、BPYJVP2、BPYJVPR、

BPYJVP2R、BPYJVTP2、BPYJVPLPR、BPYJVPLP1R、 BPYJVP2PR meets the requirements of soft stranded copper conductor of category 5 stipulated in GB/T3956-1997 standard.

• XLPE insulation, good performance of weather re-sistance and humidity resistance.

• Low transmission impedance; good performance of electromagnetic compatibility

• Low working capacitance

• Good performance of interference resistance and low radiation

• Symmetrical structure design for cable with 3 cores, which has better transmission performance com-pared with cable with 4 cores.

• 主要技术参数				Main Technical Parameter
  1、20℃时导体zui大直流电阻				Max DC resistance of conductor at 20℃
  	20℃时导体zui大直流电阻Ω/km				20℃时导体zui大直流电阻Ω/km
  导体标称截面	Max DC resistance of conductor at			导体标称截面
  					Max DC resistance of conductor at 20℃
  mm2		20℃		mm2
  nominal cross section	绞合导体		软导体	nominal cross section area	绞合导体		软导体
  area of conductor	Stranded		Flexible	of conductor
  					Stranded conductor		Flexible conductor
  	conductor		conductor
  0.5	36.0		39.0	25	0.727		0.780
  0.75	24.5		26.0	35	0.524		0.554
  1.0	18.1		19.5	50	0.387		0.386
  1.5	12.1		13.3	70	0.268		0.272
  2.5	7.41		7.98	95	0.193		0.206
  4	4.61		4.95	120	0.153		0.161
  6	3.08		3.30	150	0.124		0.129
  10	1.83		1.91	185	0.0991		0.106
  16	1.15		1.21	240	0.0754		0.0801
